Braked Beam Axle 4 on 100mm PCD - 1300kg

Part No
AX13004100

Product Features:

  • 1300kg Loading Capacity
  • 4 x 100mm PCD
  • Drop Arm Travel: 22.5° / 50mm
  • Autoreverse Knott Brakes.
THIS PRODUCT IS CUSTOM MADE TO ORDER. DELIVERY NORMALLY 4-5 WEEKS.
£562.25 £468.54

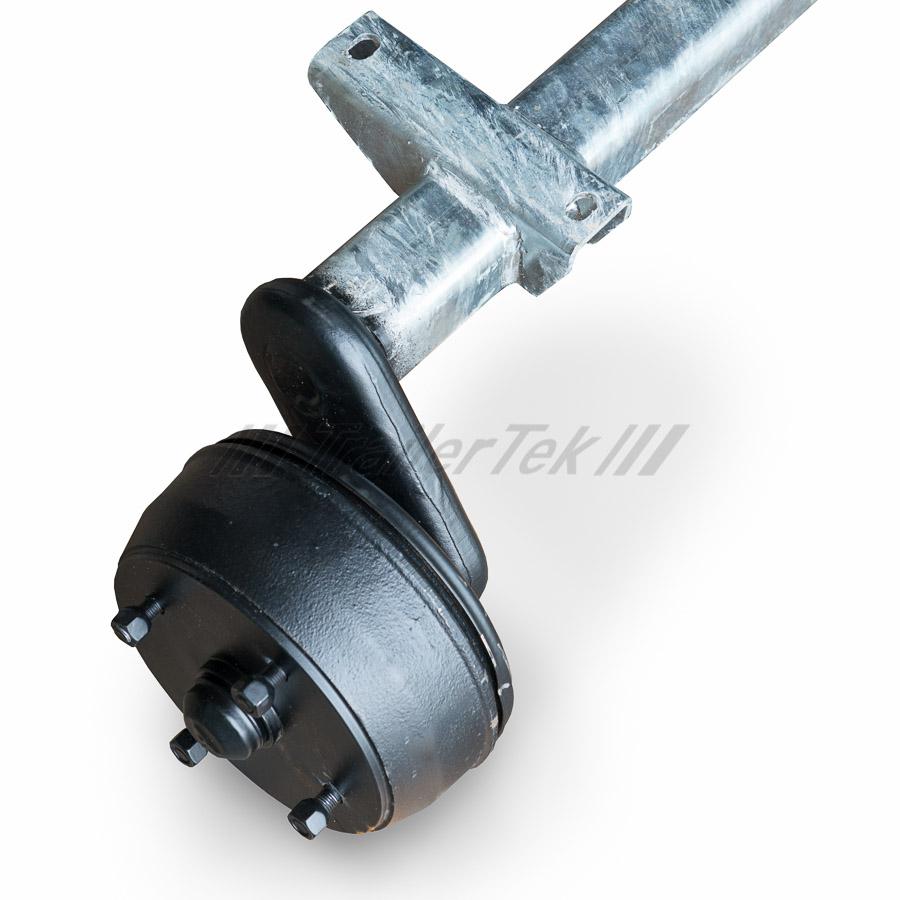

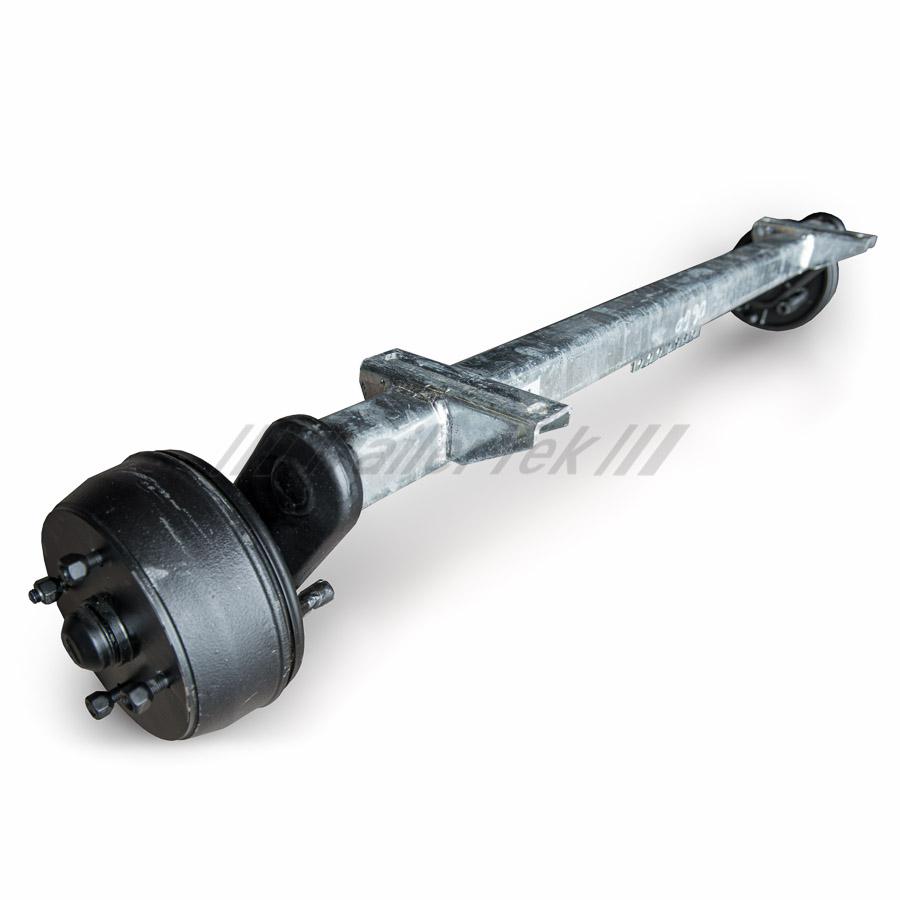

 Braked Beam Axle 4 on 100mm PCD - 1300kg

Replacement 4 stud torsion axle with a 100mm PCD, this axle can take up to 1300kg in loading capacity.

High build quality, with easy installation. Installation brackets included with the axle. Simply bolt to your trailer and fit wheels.

200mm x 50mm Autoreverse Knott brakes.

High build quality, with easy installation. Installation brackets included with the axle. Simply bolt to your trailer and fit wheels.

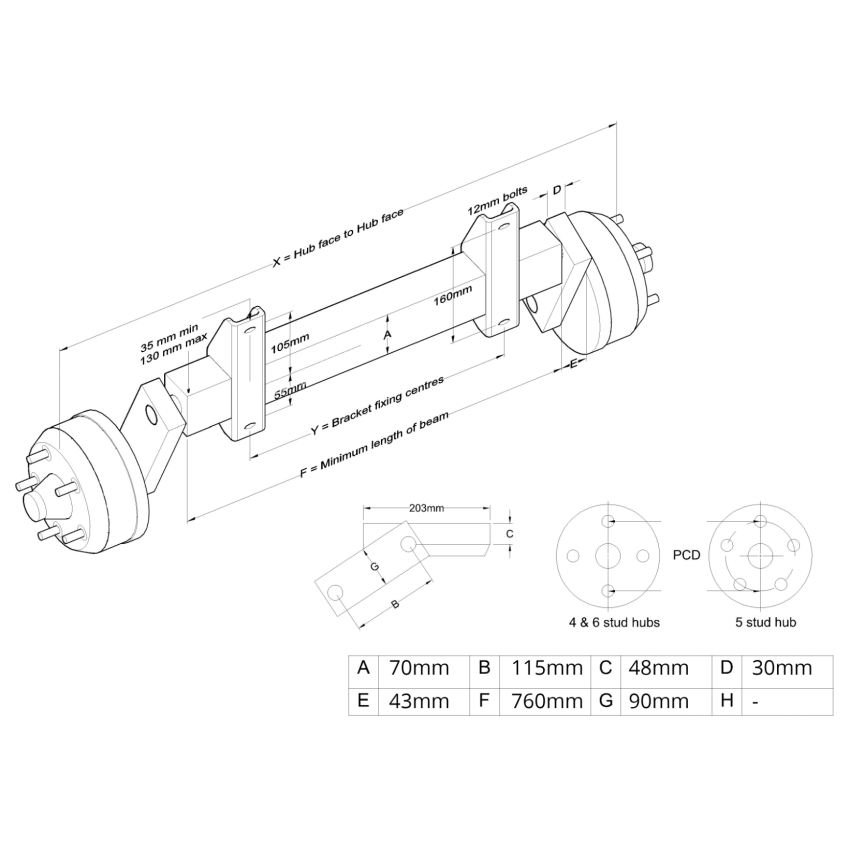

See product pictures for all dimensions of this beam axle.

This product is made to your specifications, please enter your custom X and Y dimensions below. Alternatively call/email us with these values or if you need help to measure them.

This item is over 1.2m, and is subject to a carrier's surcharge and a 48 hour delivery service.

Manufacturing lead time is 4-5 weeks.
